Overview

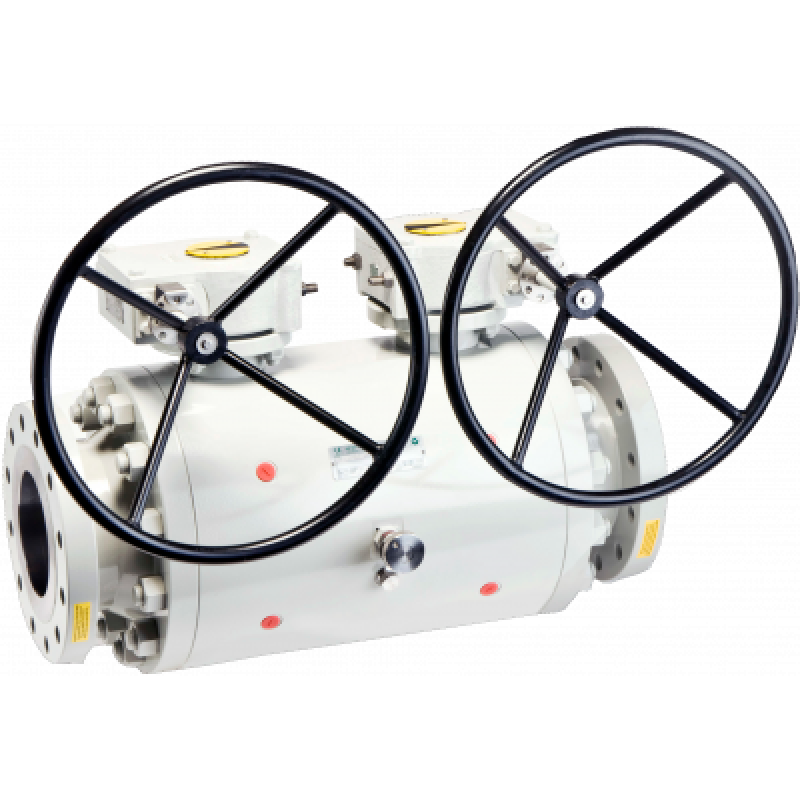

The 3 piece bolted construction provides conventional through bolting of the flanged end connections, plus the option of hub or welded ends. The overall lengths of the valve are kept to a minimum and offer considerable cost, weight and space savings over conventional piping methods of double block and bleed, using separate ball valves and spool pieces.
Valves are available with full bore sizes in accordance with API 6D, ensuring maximum flow for increased production rates and allowing pigging of the pipe line.
The integral trunnion plate design reduces leak paths through the body.
Various bleed valve options and connections are available in line with customer requirements

Available up to 16″ full bore (larger sizes on request).
Trunnion mounted design from 2″ to 16″.
Flanged connections in accordance with ASME B16.5 or API 6A, hub connectors or welded ends also available.
Integral vent valve with both threaded and flanged connections available.
