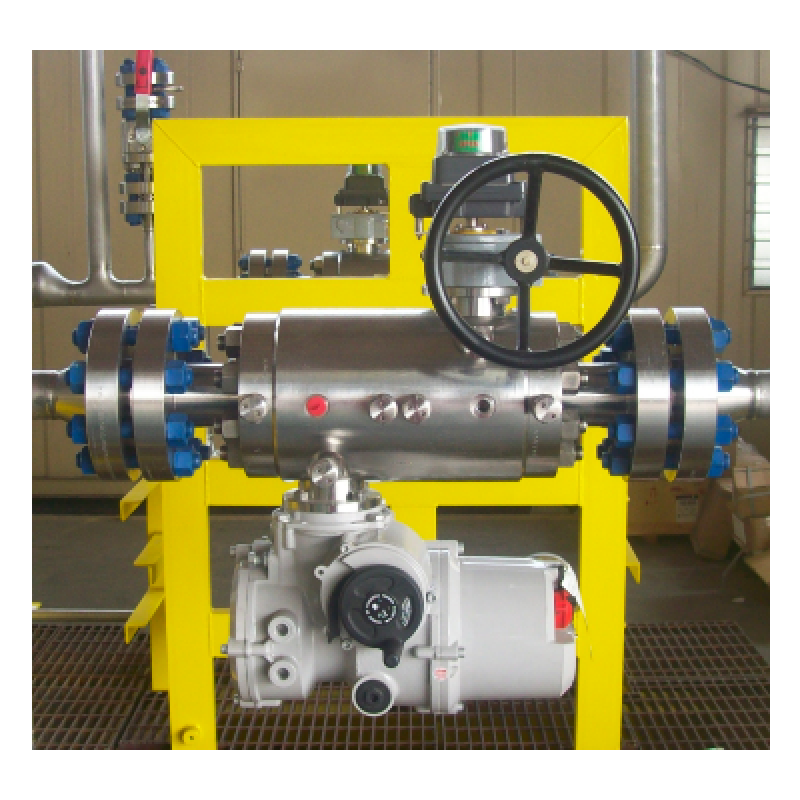

Hydcovalves hydrogen pipeline valves are designed on 20 years of pipeline ball valve qualifications and field service experience. Available in Single Isolate, Block & Bleed or Double Block and Bleed configurations in sizes up to 18″ Full and Reduced, offered in both manual and actuated quarter-turn operation.

Zero through seat leakage valves are available in both metal and soft sealing configurations.

– Construction – Single Isolate & Double block & bleed
– Type – Trunnion & Floating Balls
– Size – 1″ to 20″ Full & Reduced Bore
– Ratings – ASME Flanged 150lb To 2500lb, API 5 & 10K
– Temp range – 100 To + 350 Deg C
– Materials – Cast & Forged
– Seats – Metal & Soft
– Available with B16.10 Standard length
– Standards- ASME B16.5, ANSI B16.34, API6D, API598, BS6755 PT2, API 6A, API 607, ISO15848-1&2, ATEX
